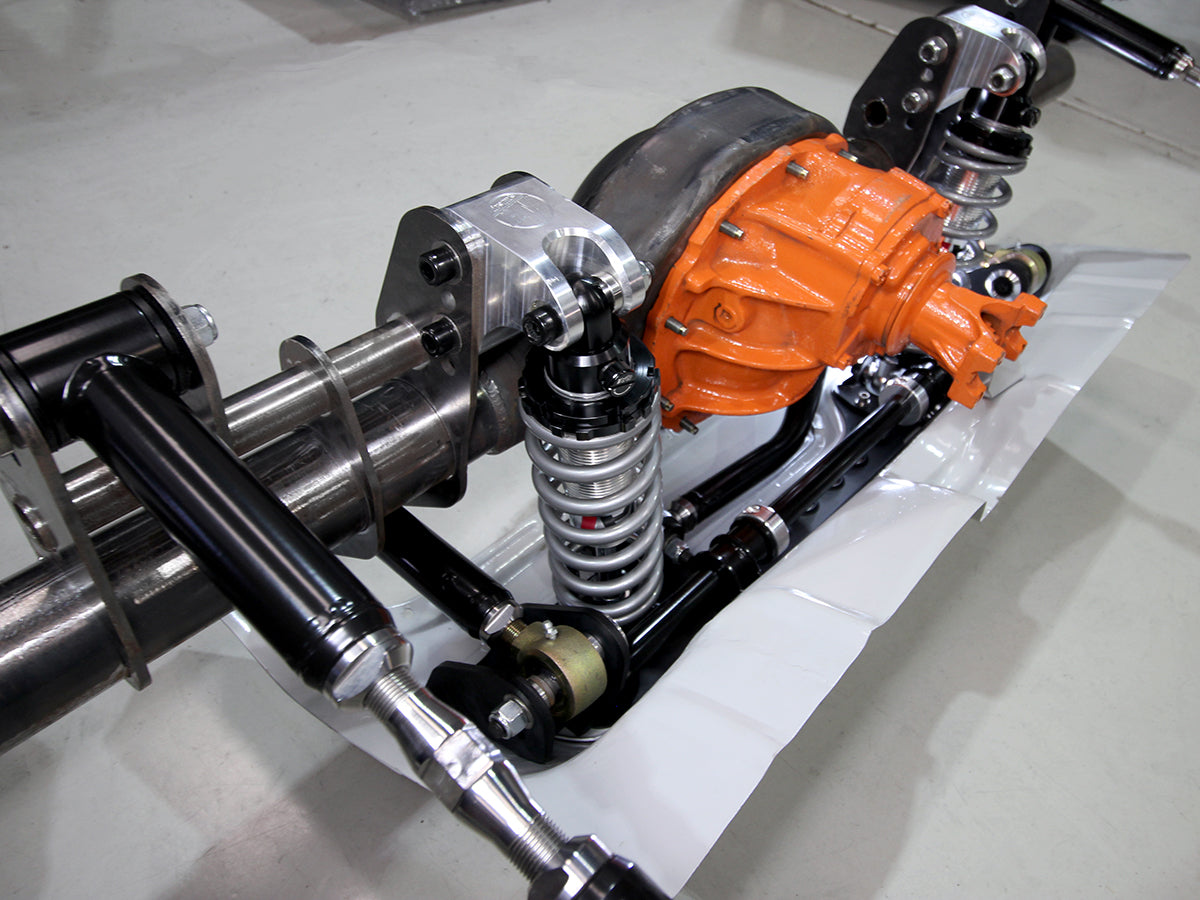

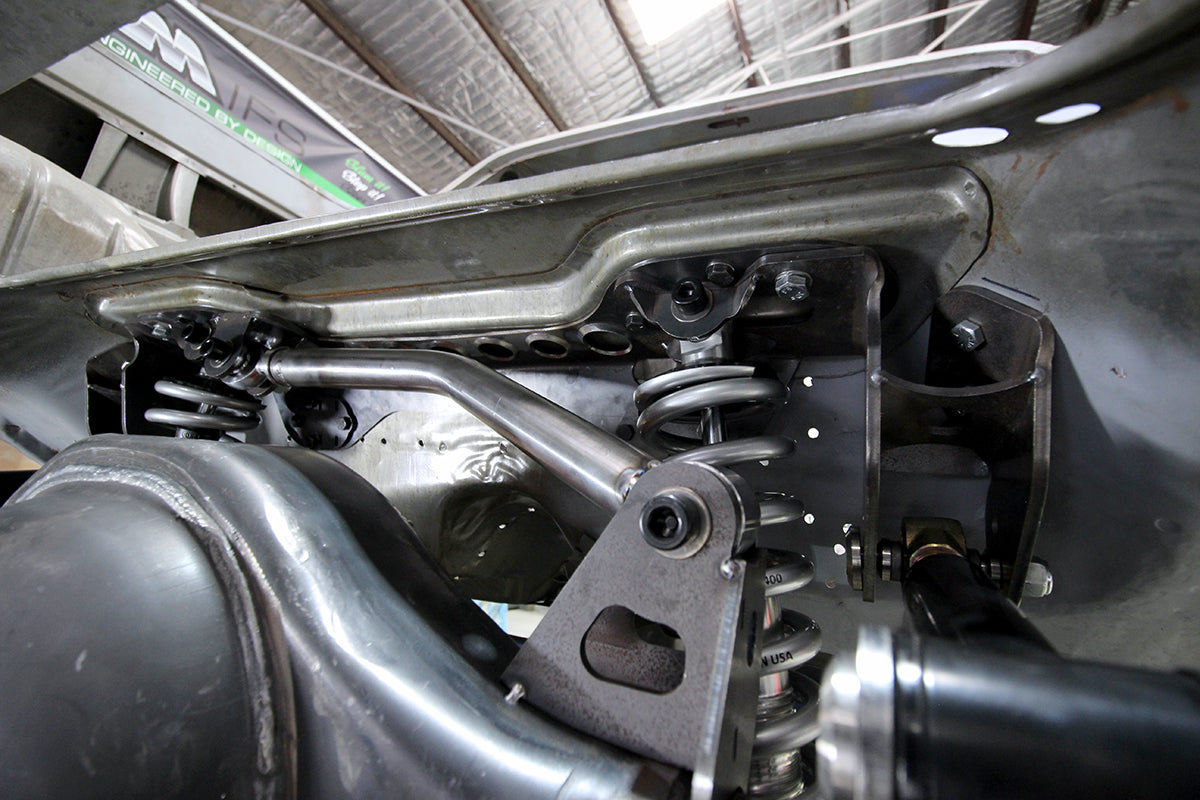

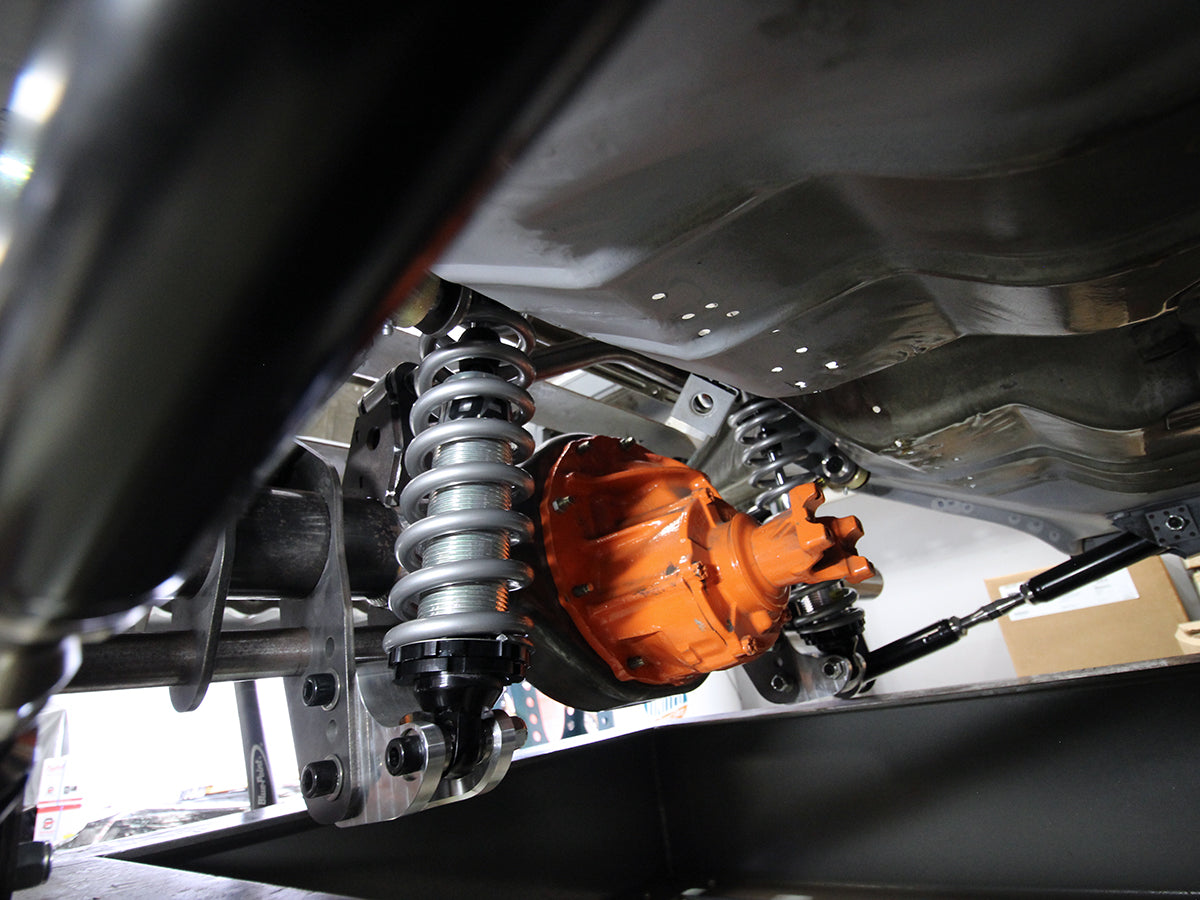

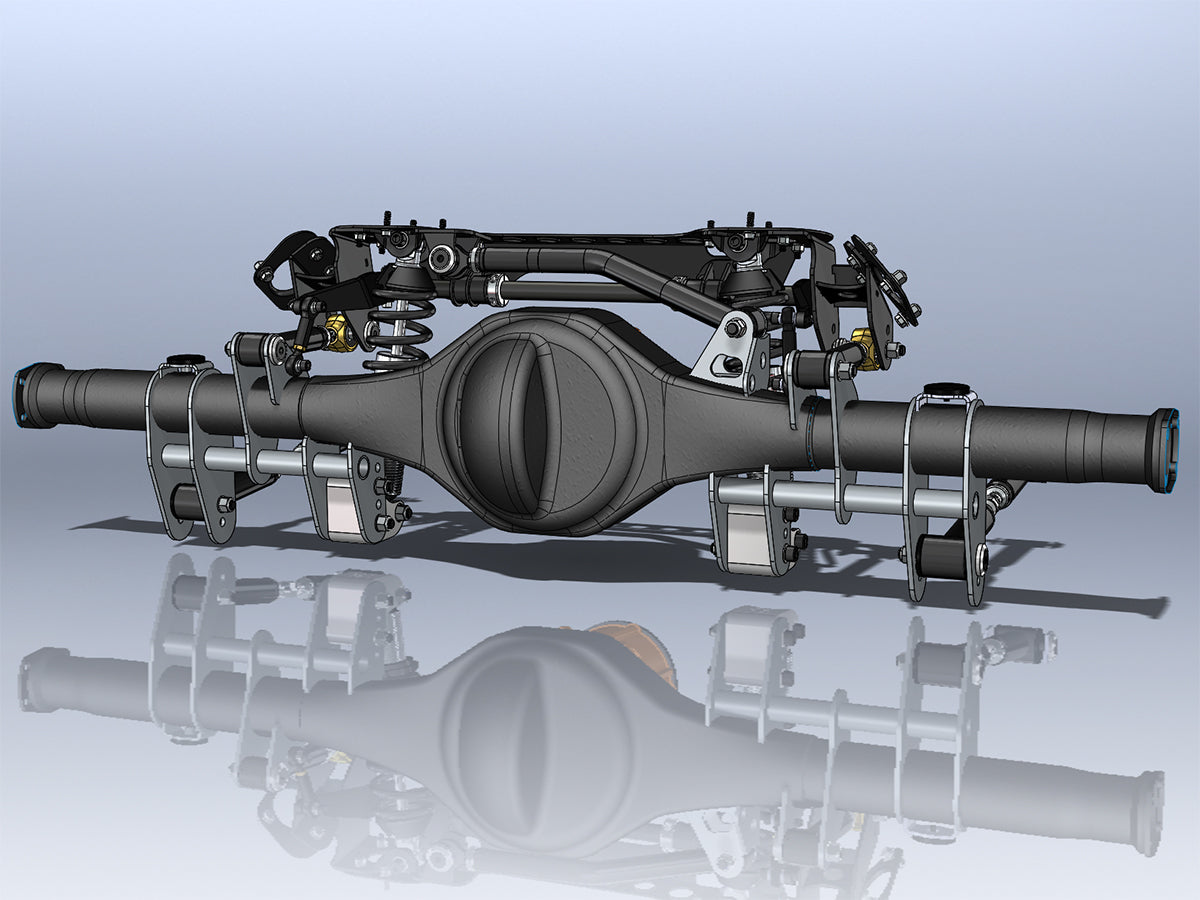

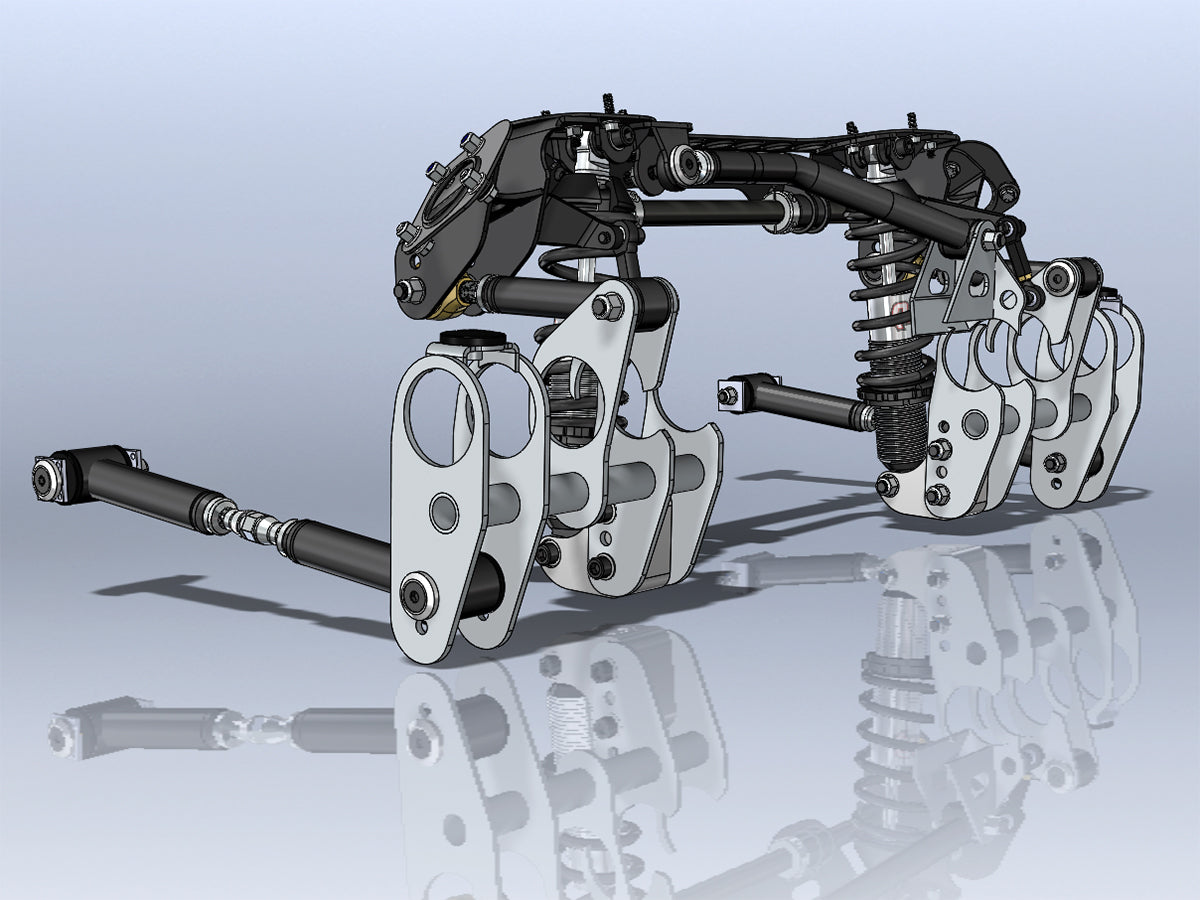

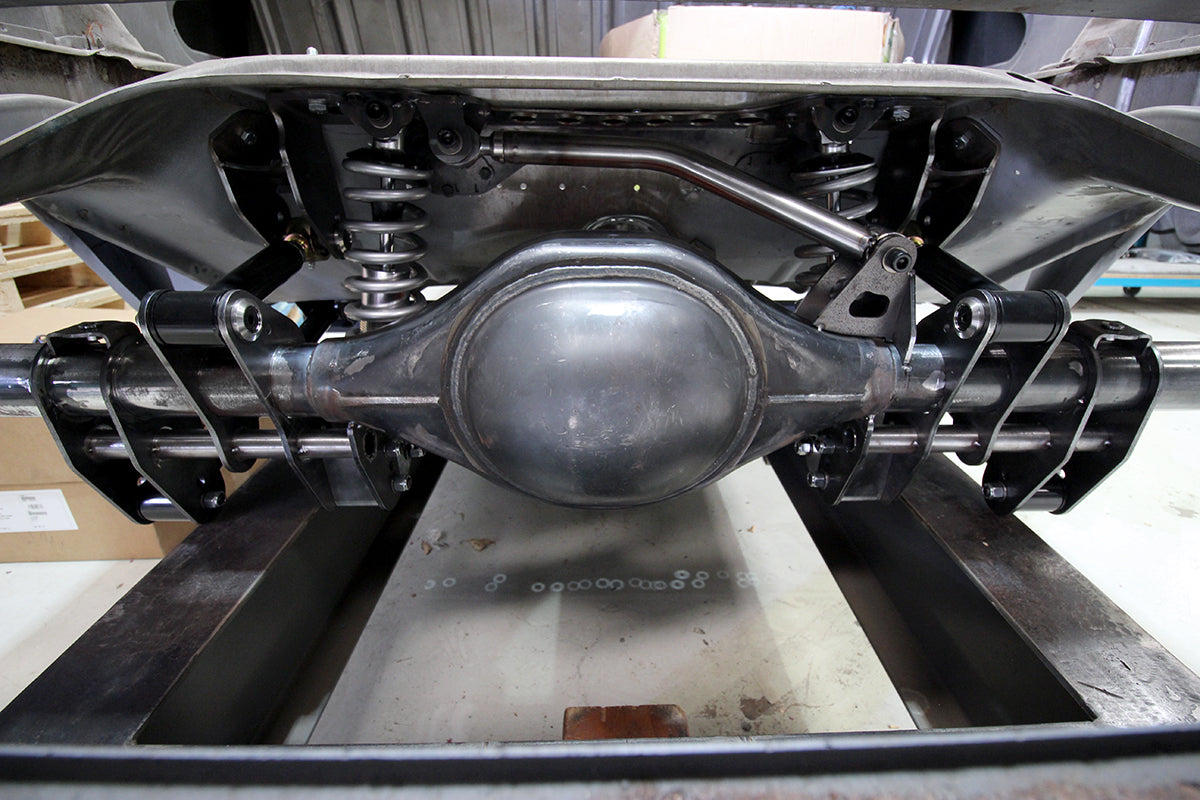

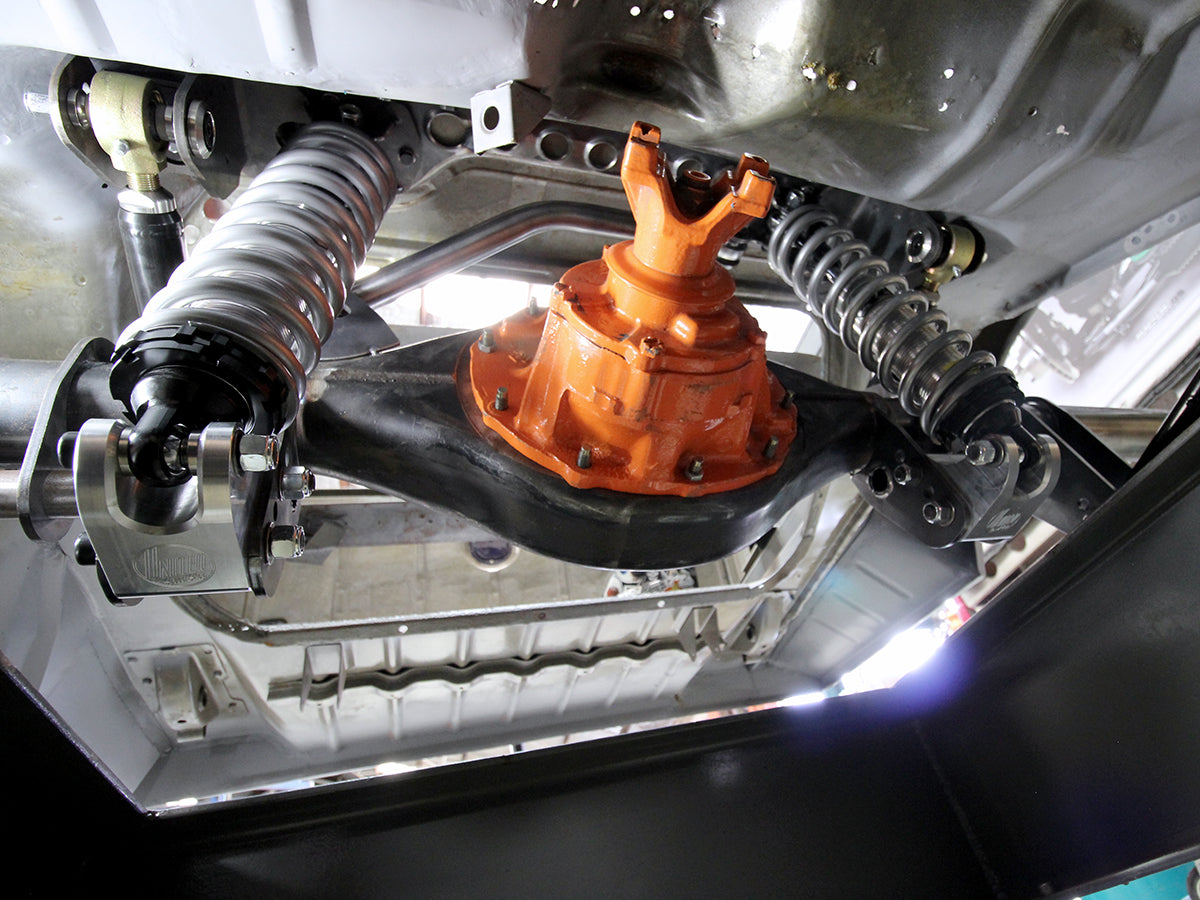

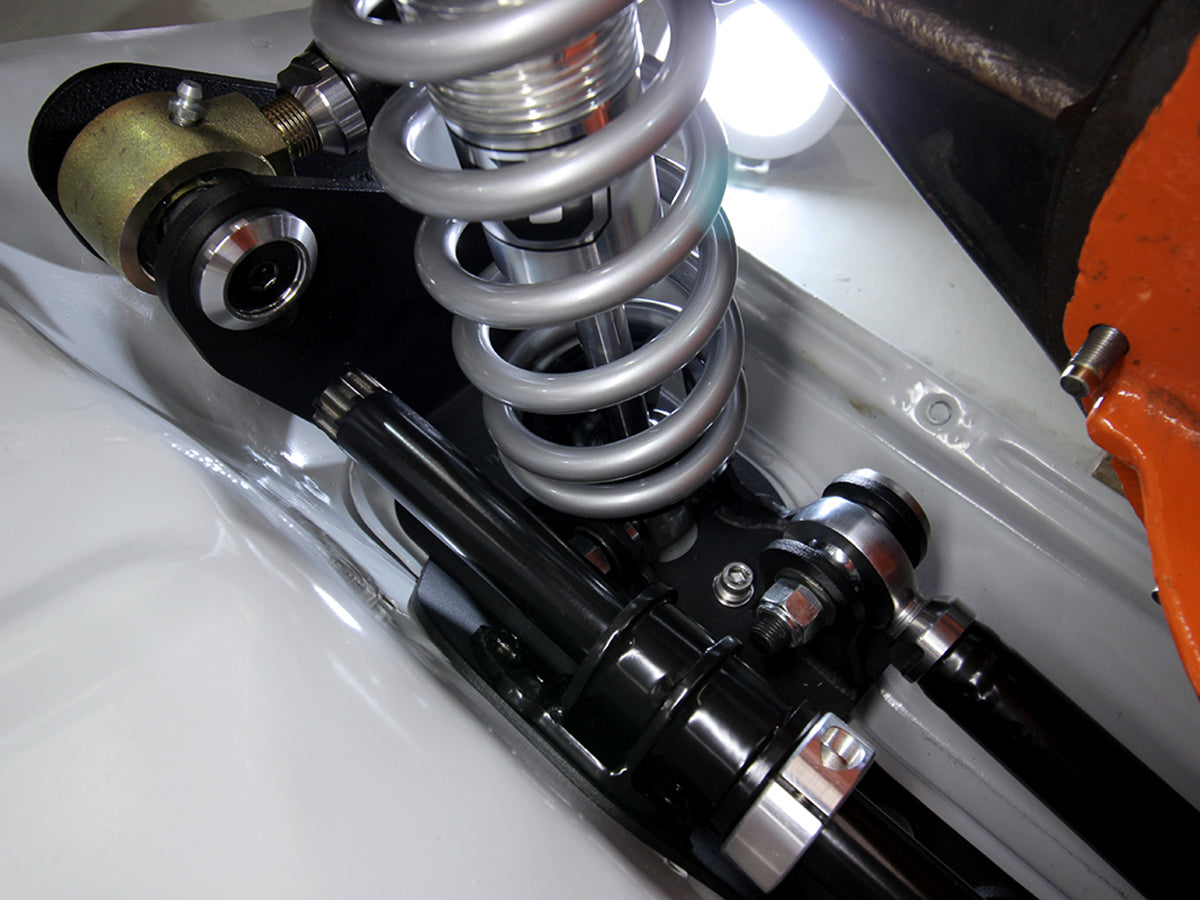

The latest in our line of rear suspension kits is this coilover and bolt-in parallel 4link kit to suit HK through HG Holden (all body styles). Aside from the diff bracketry that requires welding on, installation is a bolt in affair. Designed to work with standard or 9" diffs.

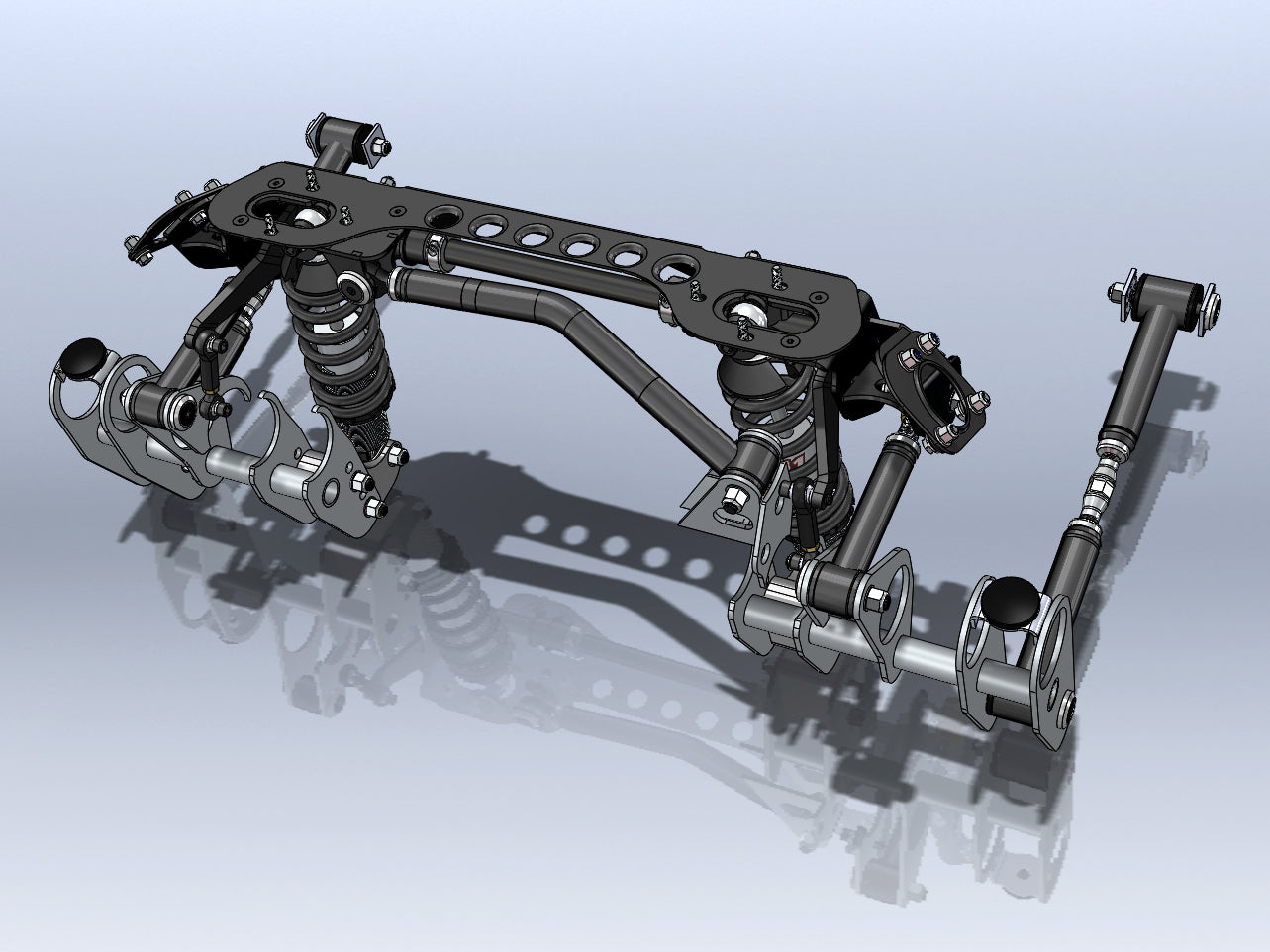

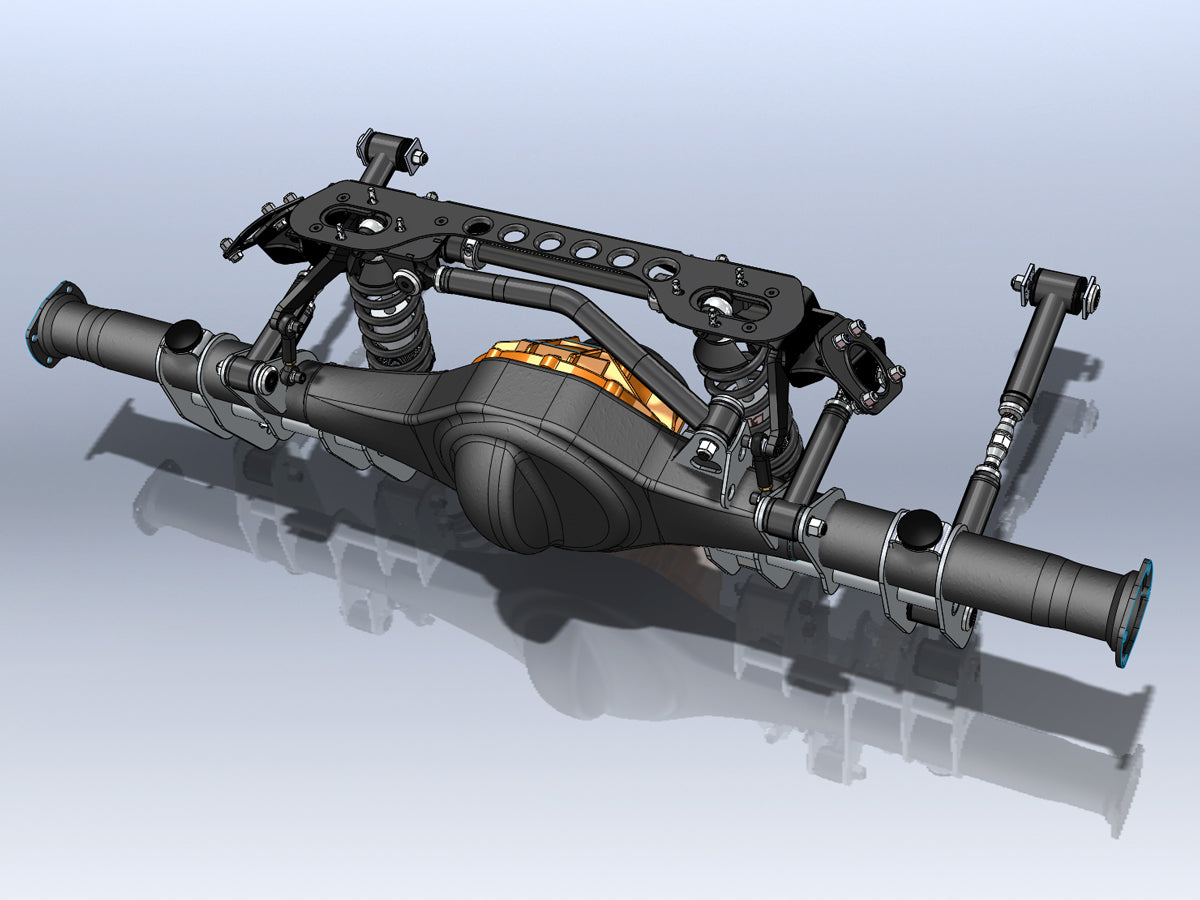

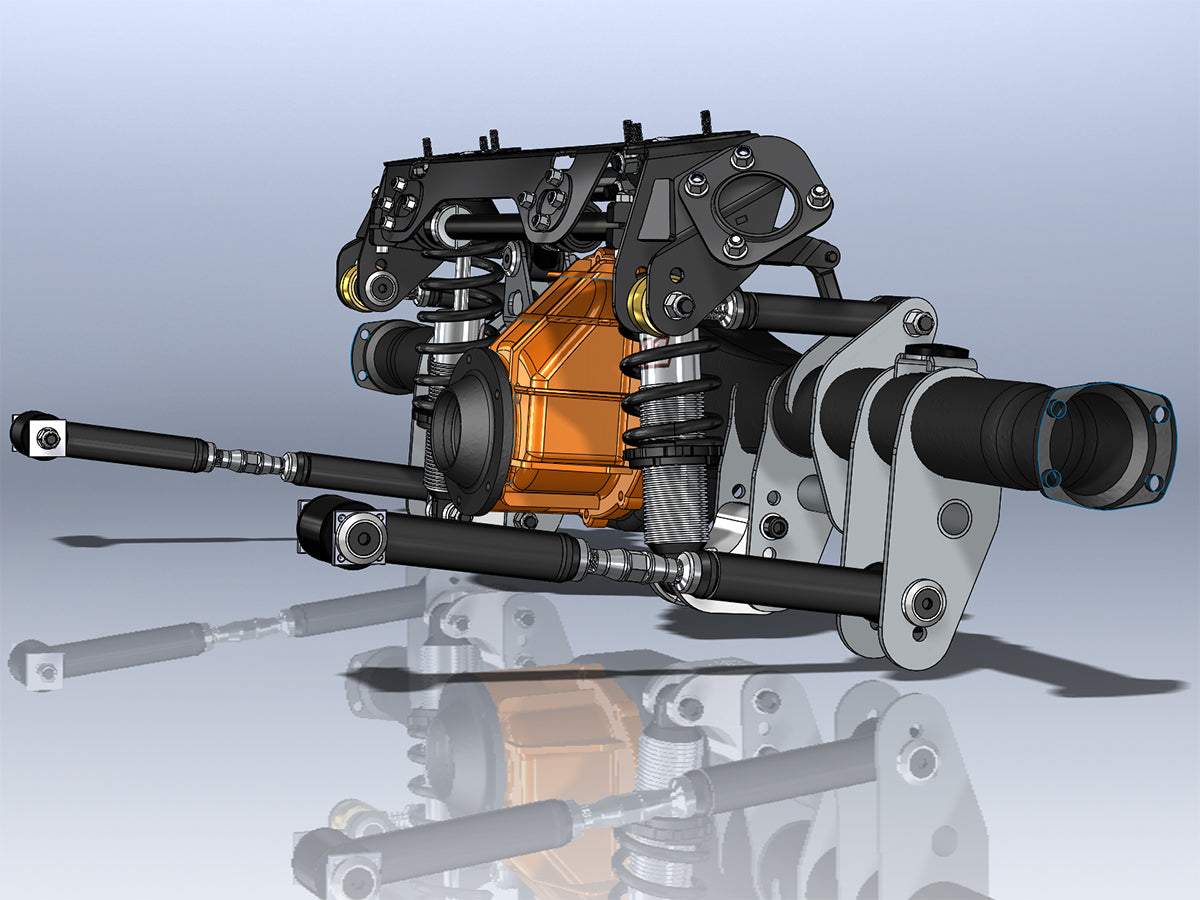

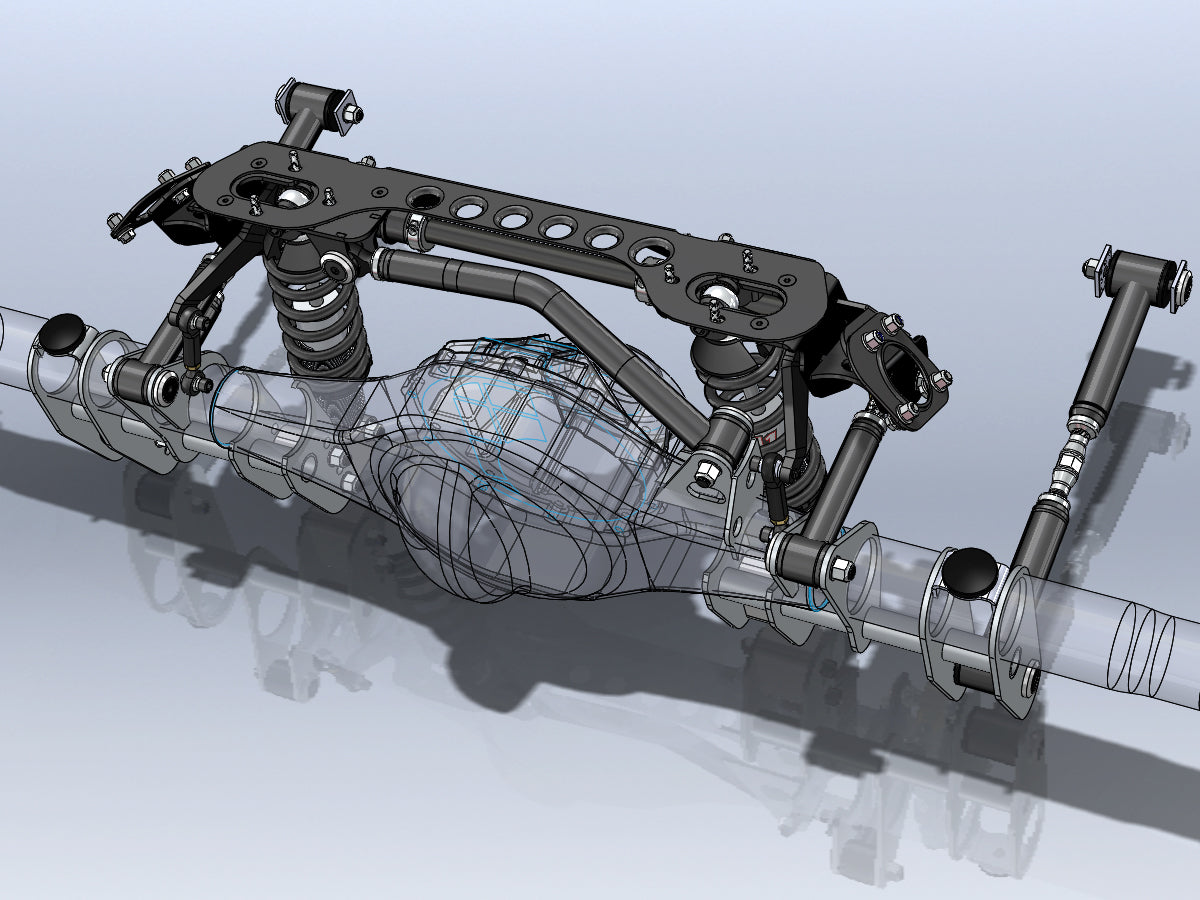

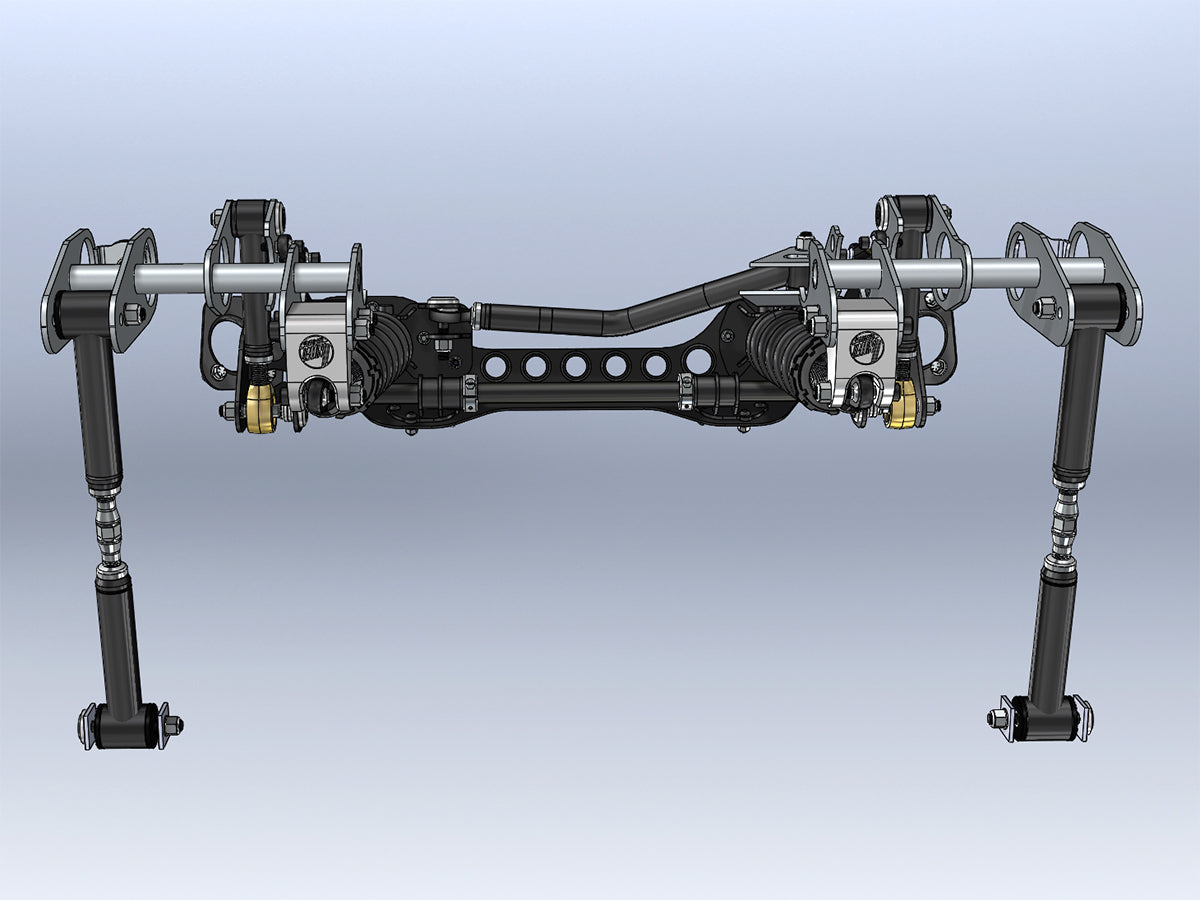

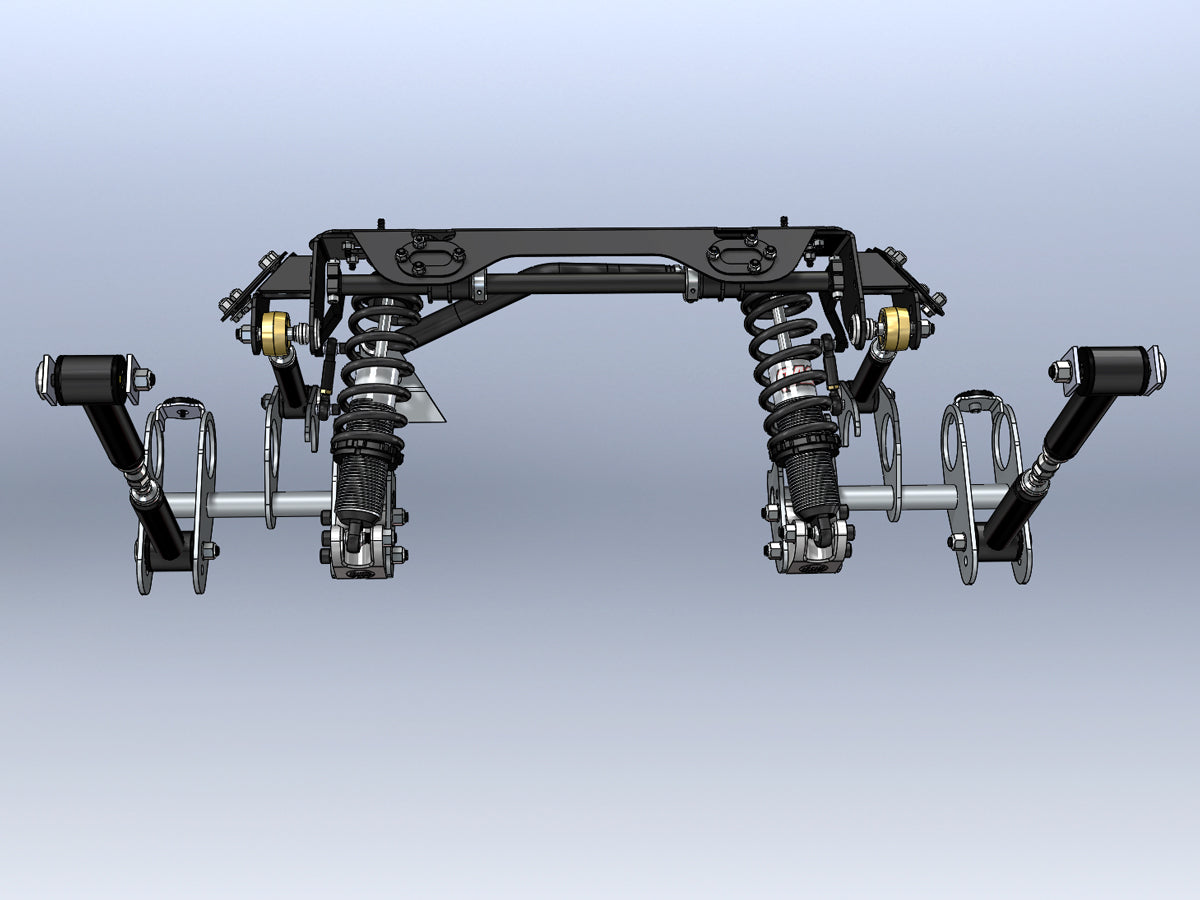

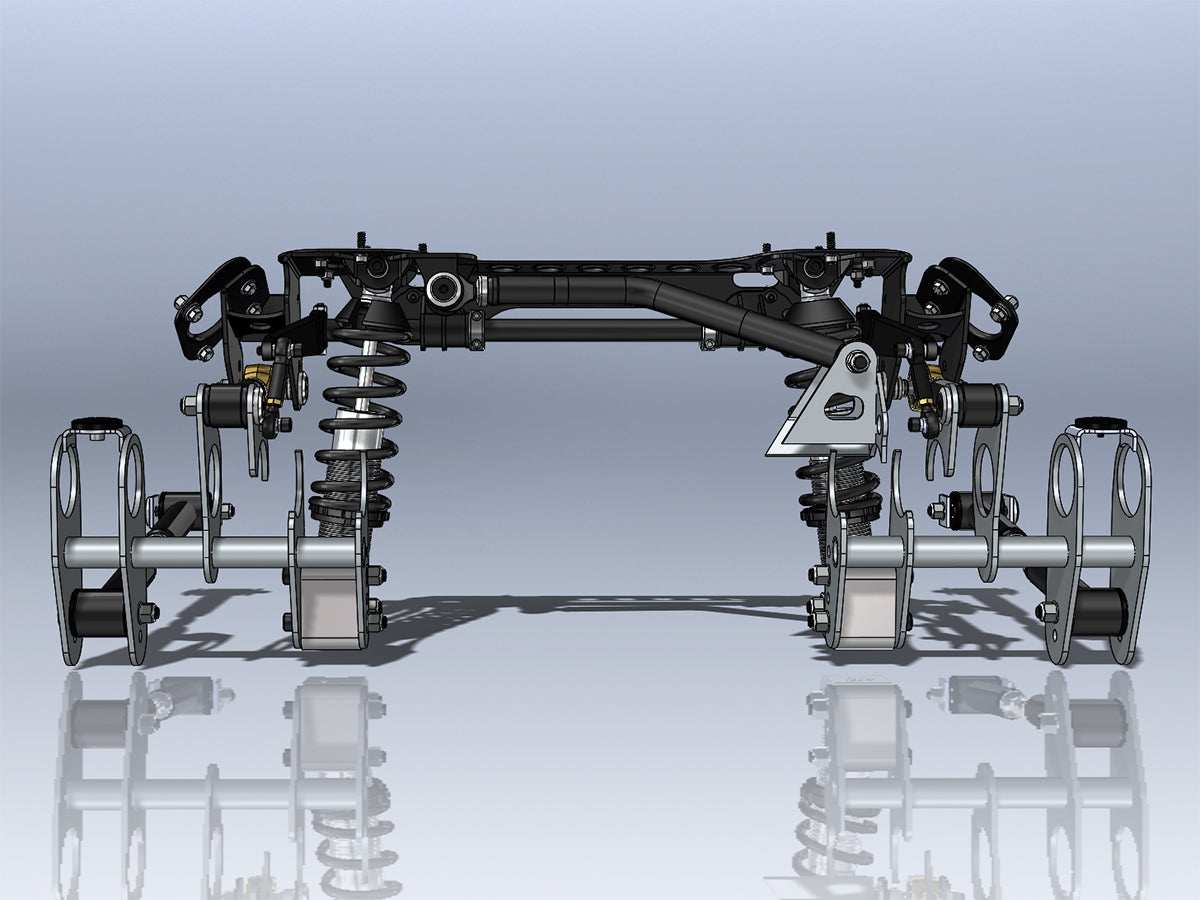

The kit is a parallel 4 link style and includes panhard bar. The original factory leaf spring mounts are used for the lower forward 4 bar mounts, and the kit will work with standard or aftermarket diffs. it will clear standard fuel tanks. Exhaust will likely need to be routed under the diff when using this kit.
FEATURES:

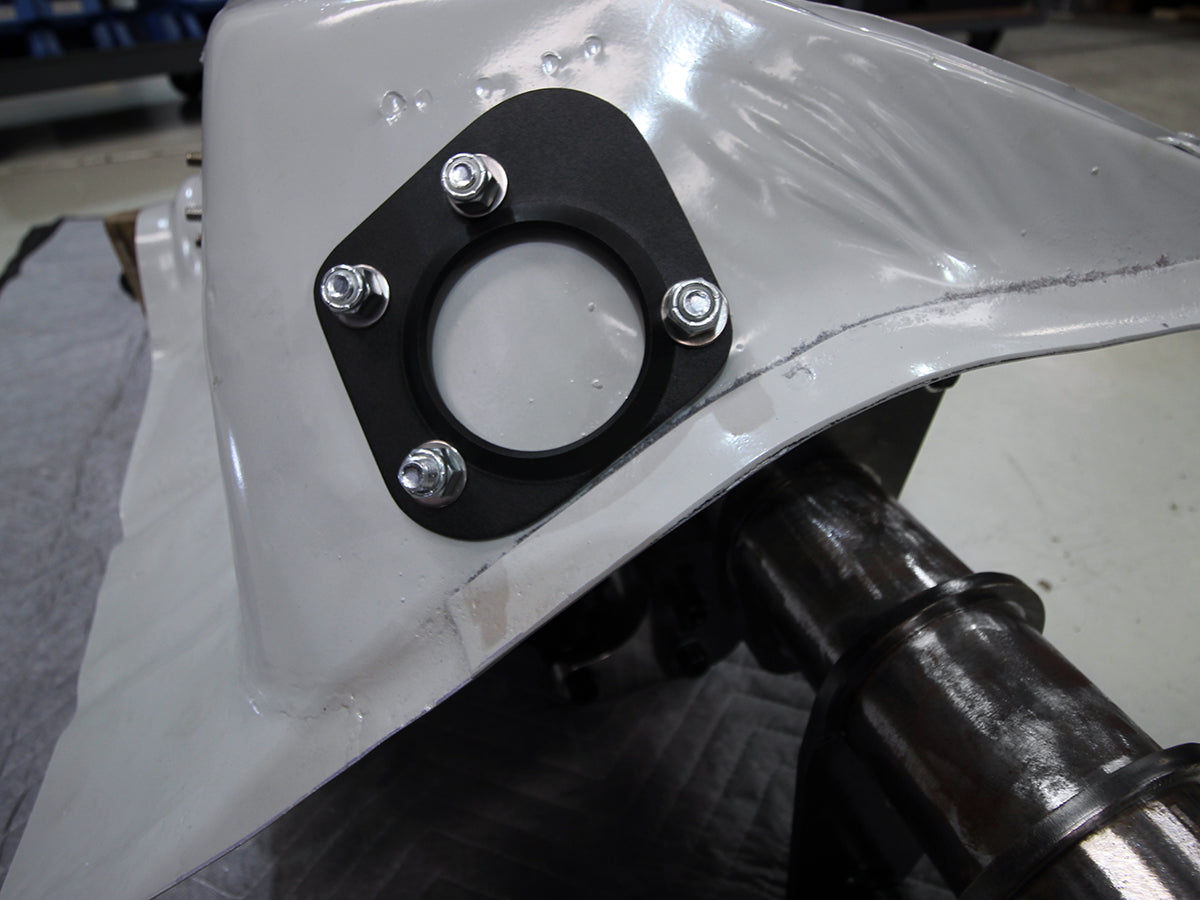

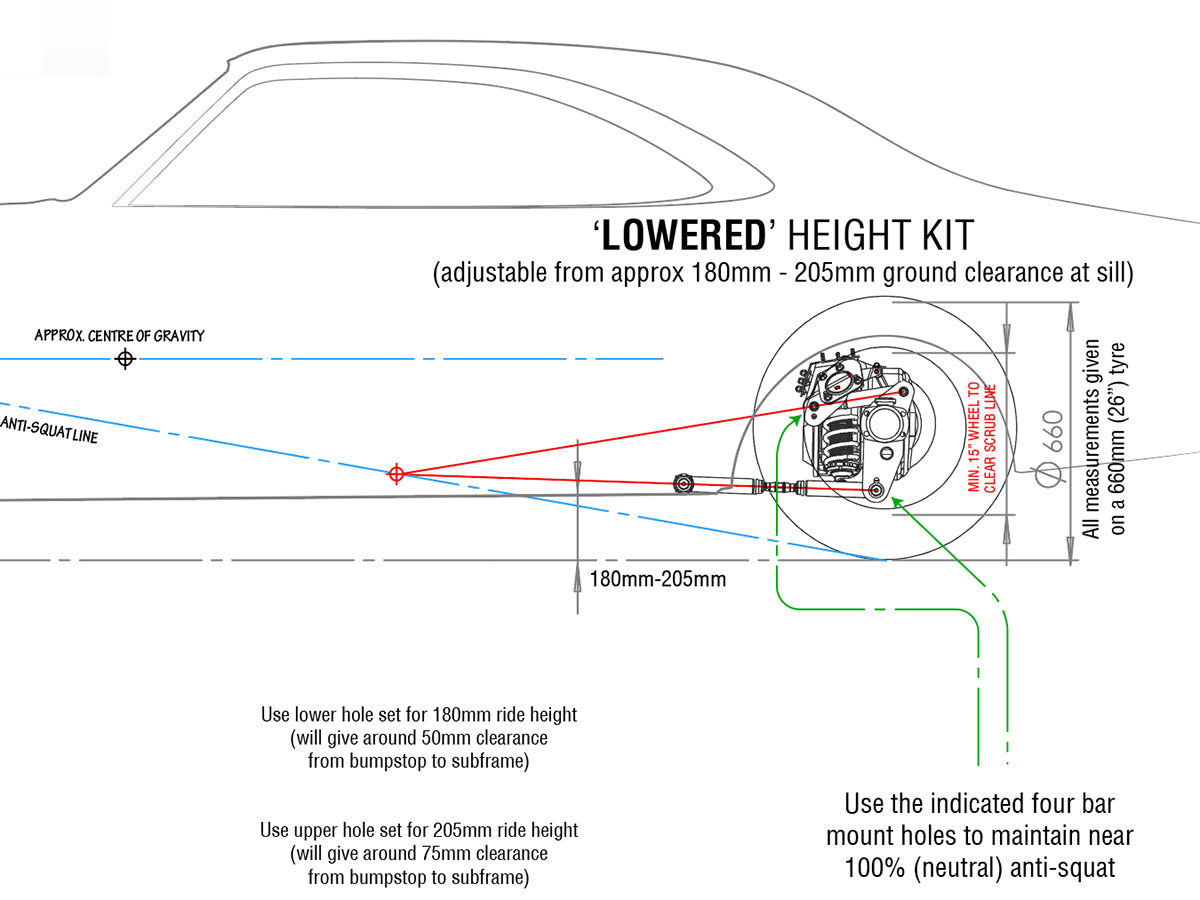

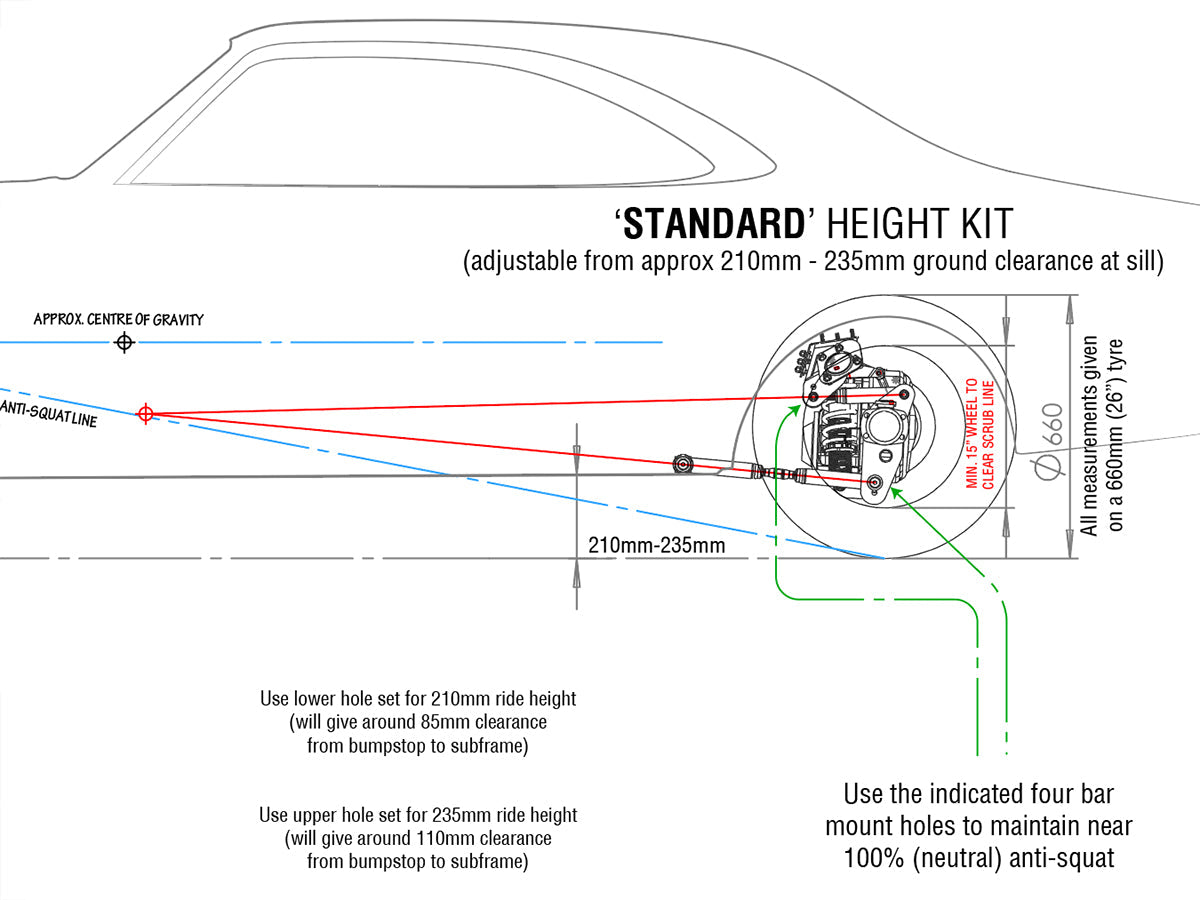

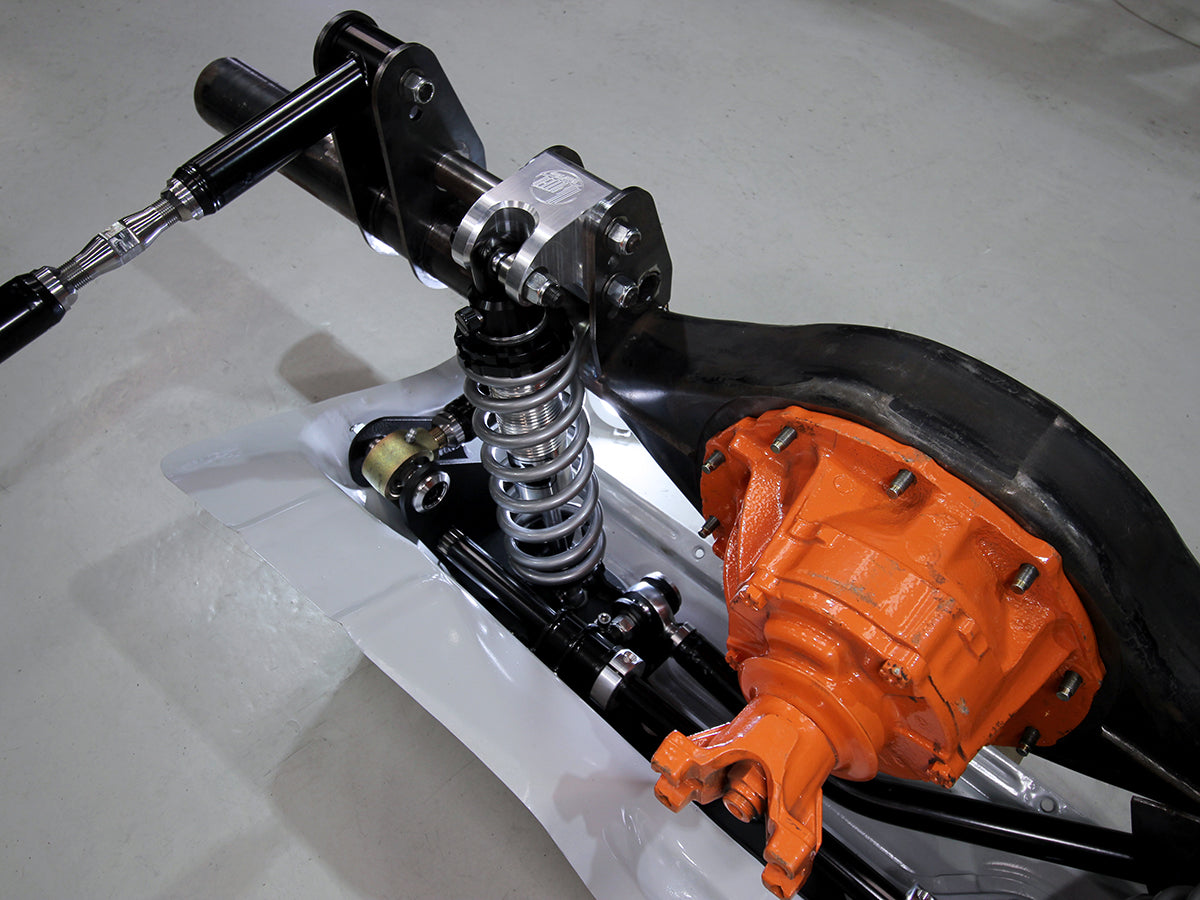

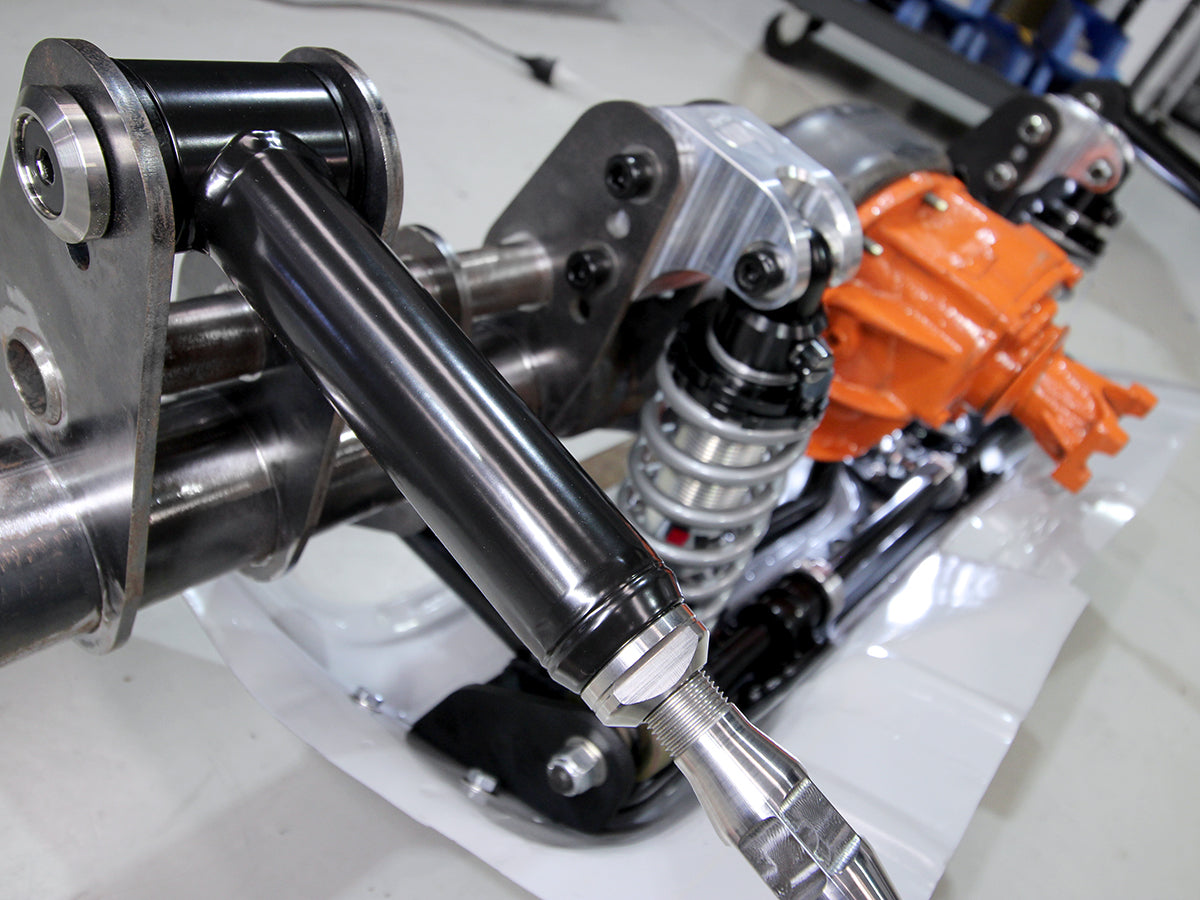

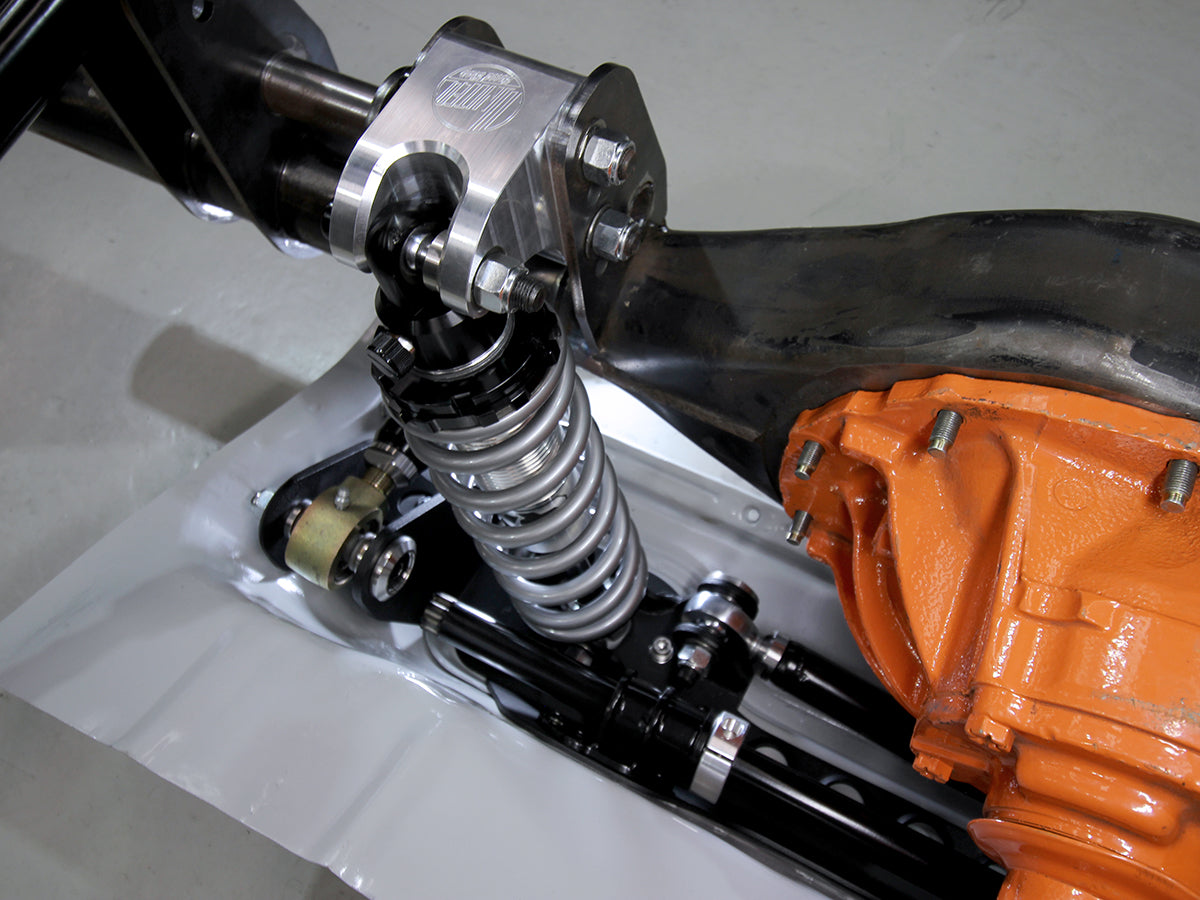

• Designed and built locally for Australian roads • Fully TIG welded construction • Includes our unique CNC machined billet aluminium 6061 double shear coilover mounts for the ultimate in strength and looks. • Complete with QA-1 double adjustable coilover shocks and your choice of spring rate. • Complete mounting hardware kit is included that includes bevelled aluminium washers, half inch fasteners, washers and nyloc nuts. • Powder coated components • Available in 'standard' or 'lowered' versions (more info here) • Optional 25mm torsion style anti-roll bar
This is the suspension kit only - for fitment to your existing (or new) differential.
